N2.2分离器法兰 N3.0工作液接口 N4.0分离器排液口
N4.2冲洗、排液口 N4.3泄漏液排放口

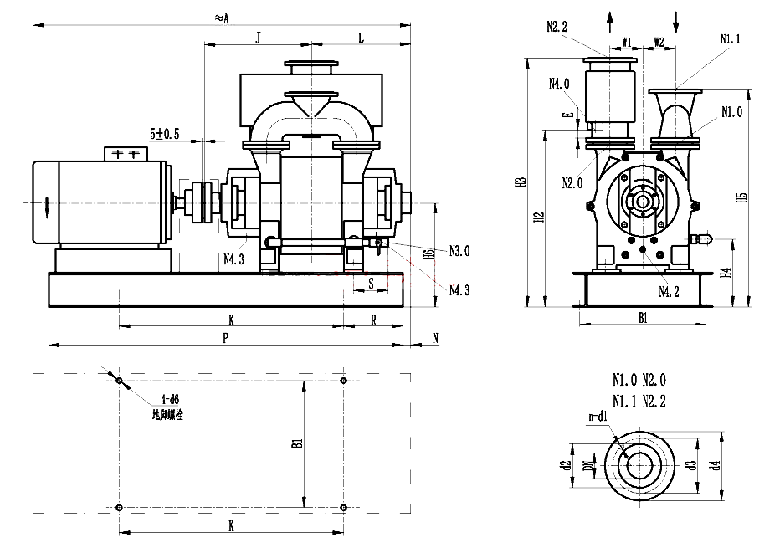

| 2BE1 102/103/151/152/153直联传动安装尺寸 | |
| |
|
| N1.0进气端法兰 N1.1连通管法兰
N2.0排气端法兰 N2.2分离器法兰 N3.0工作液接口 N4.0分离器排液口 N4.2冲洗、排液口 N4.3泄漏液排放口 |
|
|
代号
|
A
|
B1
|
d6
|
E
|
H2
|
H3
|
H4
|
H5
|
H6
|
J
|
K
|
L
|
N
|
P
|
R
|
|
|
2BE1 102
|
1260
|
360
|
22
|
37
|
494
|
745
|
174
|
595
|
280
|
377
|
660
|
353
|
133
|
1015
|
176
|
|
|
2BE1 103
|
1395
|
360
|
22
|
37
|
494
|
745
|
174
|
595
|
280
|
409.5
|
840
|
395.5
|
92
|
1015
|
211
|
|
|
2BE1 151
|
1465
|
400
|
22
|
50
|
587
|
865
|
214
|
720
|
345
|
411.5
|
840
|
388.5
|
100
|
1265
|
211
|
|
|
2BE1 152
|
1490
|
400
|
22
|
50
|
587
|
865
|
214
|
720
|
345
|
424
|
840
|
401
|
125
|
1265
|
211
|
|
|
2BE1 153
|
1610
|
400
|
22
|
50
|
587
|
865
|
214
|
720
|
345
|
454
|
840
|
431
|
185
|
1265
|
211
|
|
|
代号
|
S
|
W1
|
W2
|
N3.0
|
N4.0
|
N4.2
|
N4.3
|
|
|
|
|
|
|
|
|
|
|
2BE1 102
|
145
|
105
|
105
|
G3/4"
|
G2"
|
G1/2"
|
G1/4"
|
|
|
|
|
|
|
|
|
|
|
2BE1 103
|
145
|
105
|
105
|
G3/4"
|
G2"
|
G1/2"
|
G1/4"
|
|
|
|
|
|
|
|
|
|
|
2BE1 151
|
145
|
125
|
125
|
G3/4"
|
G2"
|
G1/2"
|
G1/4"
|
|
|
|
|
|
|
|
|
|
|
2BE1 152
|
145
|
125
|
125
|
G3/4"
|
G2"
|
G1/2"
|
G1/4"
|
|
|
|
|
|
|
|
|
|
|
2BE1 153
|
145
|
125
|
125
|
G3/4"
|
G2"
|
G1/2"
|
G1/4"
|
|
|
|
|
|
|
|
|
|
|
代号
|
DN
|
d1
|
d2
|
d3
|
d4
|
n
|
代号
|
DN
|
d1
|
d2
|
d3
|
d4
|
n
|
|||
|
2BE1 102
2BE1 103 |
N1.0
N2.0 |
50
|
18
|
102
|
125
|
165
|
4
|
2BE1 151
2BE1 152 2BE1 153 |
N1.0
N2.0 |
65
|
18
|
122
|
145
|
185
|
4
|
|
|
N1.1
N2.2 |
65
|
18
|
122
|
145
|
185
|
4
|
N1.1
N2.2 |
100
|
18
|
158
|
180
|
220
|
8
|
|||
